6221MG 20kg torque Servo motor 120 องศา เซอร์โวมอเตอร์ เเรงบิดสูง 20 กิโล

Features:

Digital servo - 20 kg big torque

High precision Taiwan manufacturing metal teeth

- CNC aluminium shell

- double ball bearing

PDI - 6221 mg - 360 - degree turn continuous detailed specifications:

Please copy the video address to open the new page: http://v.youku.com/v_show/id_XNzU1Njg5OTI0.html

Dead zones: 2 mu s

Maximum pulse width: 500-500 us, pulse width in the 1470-1530 us to stop (suitable for remote control, MCU)

Angle range: turn 360 °

Working voltage: DC4.8 V to 6.6 V

Motor: core

Speed (4.8 V) : 53 RPM

Velocity (v) : 65 r/min

Size: 40.5 X20.2 X38mm/(standard size)

Weight: 62 g (2.18 oz)

Cable: JR 265 mm (10.43 in)

Bearing: 2 bb

Output teeth: 25 t (Futaba gm)

Contains the steering gear accessories package, a word, half, cross, * type, disc, the screw

Now that adapt to the range of pulse width 500 us - 2500 us (0.5-2.5 - ms), can also be used to other range pulse width, middle 1500 us stop (1.5 ms), the equivalent of reducer, to adapt to the DIY car, etc., control signal is consistent with the standards of steering gear,

For example, DIY car 1500 us is stopped or drag brake, 1500 is beyond us forward or backward

PDI - 6221 mg - 360: us 6221-500 - us is positive, 1530 us - 2500 - us is reverse,

PDI - 6221 - mg + us 6221-360-500 - us is reverse, us 1530-1530 - us is positive,

PDI - 6221 mg - 6221 specifications:

Dead zones: 2 mu s

Range of pulse width: 500 mu mu s - 2500 s (MCU)

172 + 2 ° Angle range: the actual Angle

Working voltage: DC4.8 V to 6.6 V

Motor: core

Velocity (V) 4.8:0.18 SEC / 85 °

Velocity (v) : 0.16 SEC / 85 °

Torsion (4.8 V) : 17.25 kg. Cm (239.55 oz/in)

Torsion (6 v) : 20.32 kg - cm (281.89 oz/in)

Size: 40.5 X20.2 X38mm/(standard size)

Weight: 62 g (2.18 oz)

Cable: JR 265 mm (10.43 in)

Bearing: 2 bb

Output teeth: 25 t (Futaba gm)

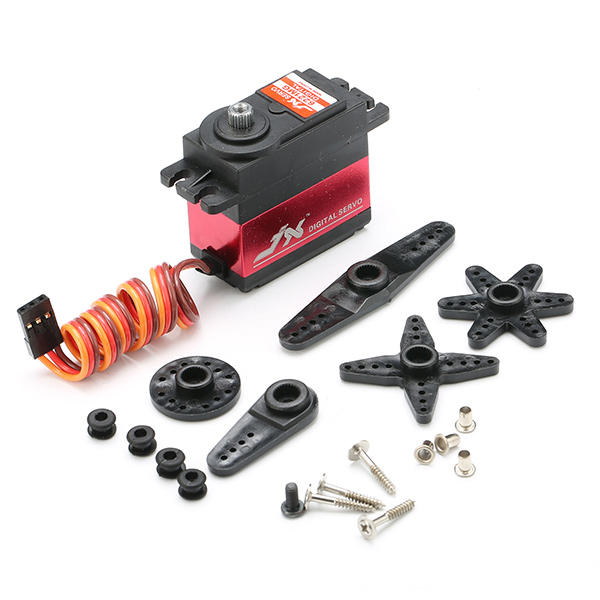

Contains the steering gear accessories package, a word, half, cross, * type, disc, the screw

User information:

1, the individual must be 1.2 A or above power supply current and frequency above 200 hz;

2, wall protection, for wall load more than 15 seconds will start blocking protection function, current decline since the start, no lock, eliminate plugging after loaded back to normal;

3, there motionless, jitter, reverse pause or torsion obviously is very small, need to check the first calls the requirements;
