Motor Drive 30A VNH5019 วงจรขับมอเตอร์ 24 Volt 30 Amp

รองรับเเรงดัน 27 โวล กระเเสสูงสุด 30 แอมป์ จงจรรอบรับมอเตอร์ 2 ตัว

Overview

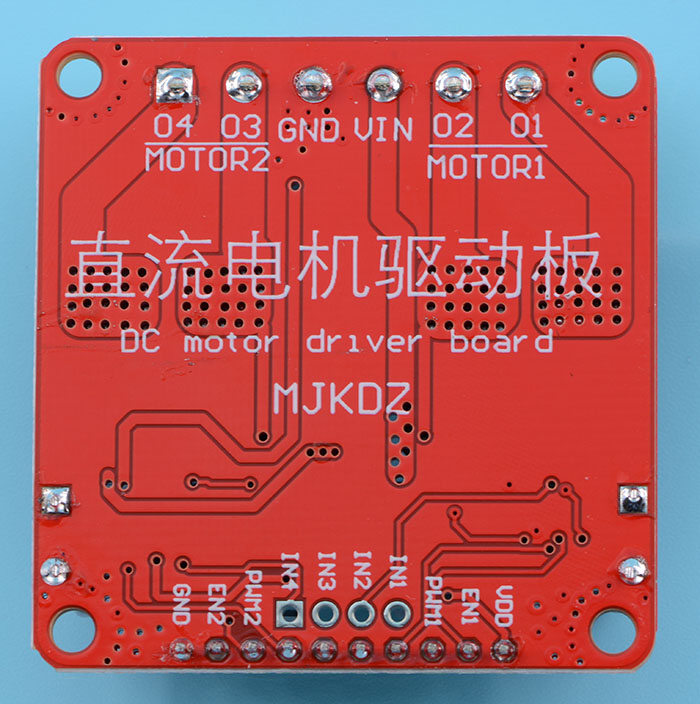

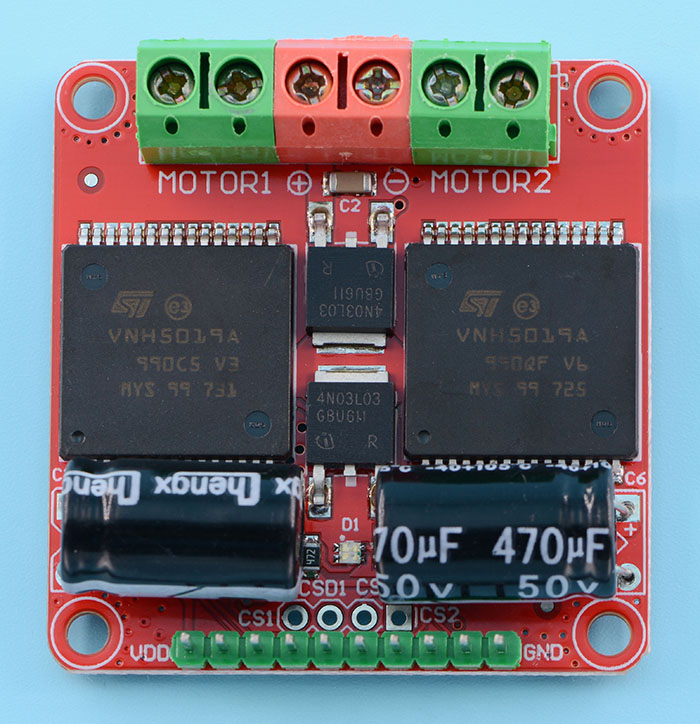

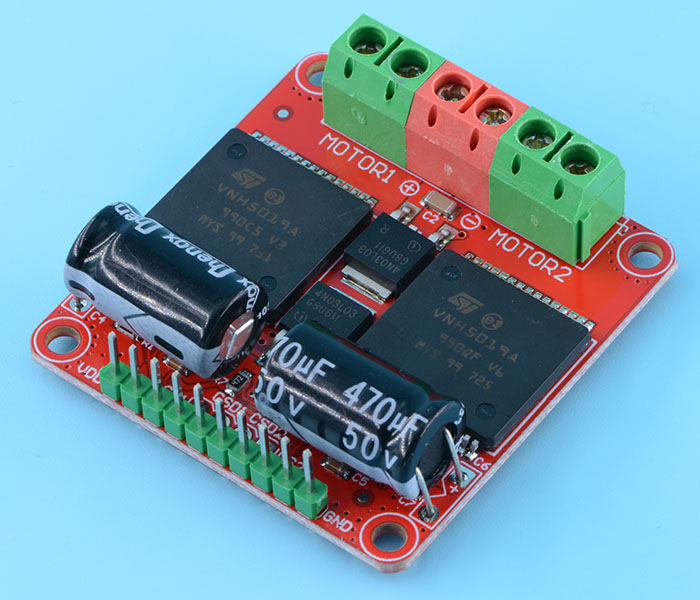

This module is a compact breakout board for ST’s high-power VNH5019 motor driver IC, a fully integrated H-bridge that can be used for bidirectional speed control of a single brushed DC motor. The basic operation of the driver is summarized below, but we also recommend careful reading of the VNH5019 datasheet (475k pdf) before using this product. The board incorporates most of the components of the typical application diagram on page 14 of the VNH5019 datasheet, including pull-up and current-limiting resistors and a FET for reverse battery protection. It ships fully populated with its SMD components, including the VNH5019, as shown in the product picture.

Features

• Operating voltage: 5.5 – 24 V¹
• Output current: 12 A continuous (30 maximum)
• 3V-compatible inputs
• PWM operation up to 20 kHz, which is ultrasonic and allows for quieter motor operation
• Current sense output proportional to motor current (approx. 140 mV/A; only active while H-bridge is driving)
• Motor indicator LEDs (indicates what the outputs are doing even when no motor is connected)
• Robust:
  • Reverse-voltage protection to -16 V
  • Can survive input voltages up to 41 V
  • Undervoltage and overvoltage shutdown
  • High-side and low-side thermal shutdown
  • Short-to-ground and short-to-Vcc protection

¹ While the overvoltage protection typically kicks in at 27 V, it can trigger at voltages as low as 24 V, so we do not recommend using this motor driver with 24 V batteries, which significantly exceed 24 V when fully charged.
