DC-to-DC Step Up XL6009 Module (4A)

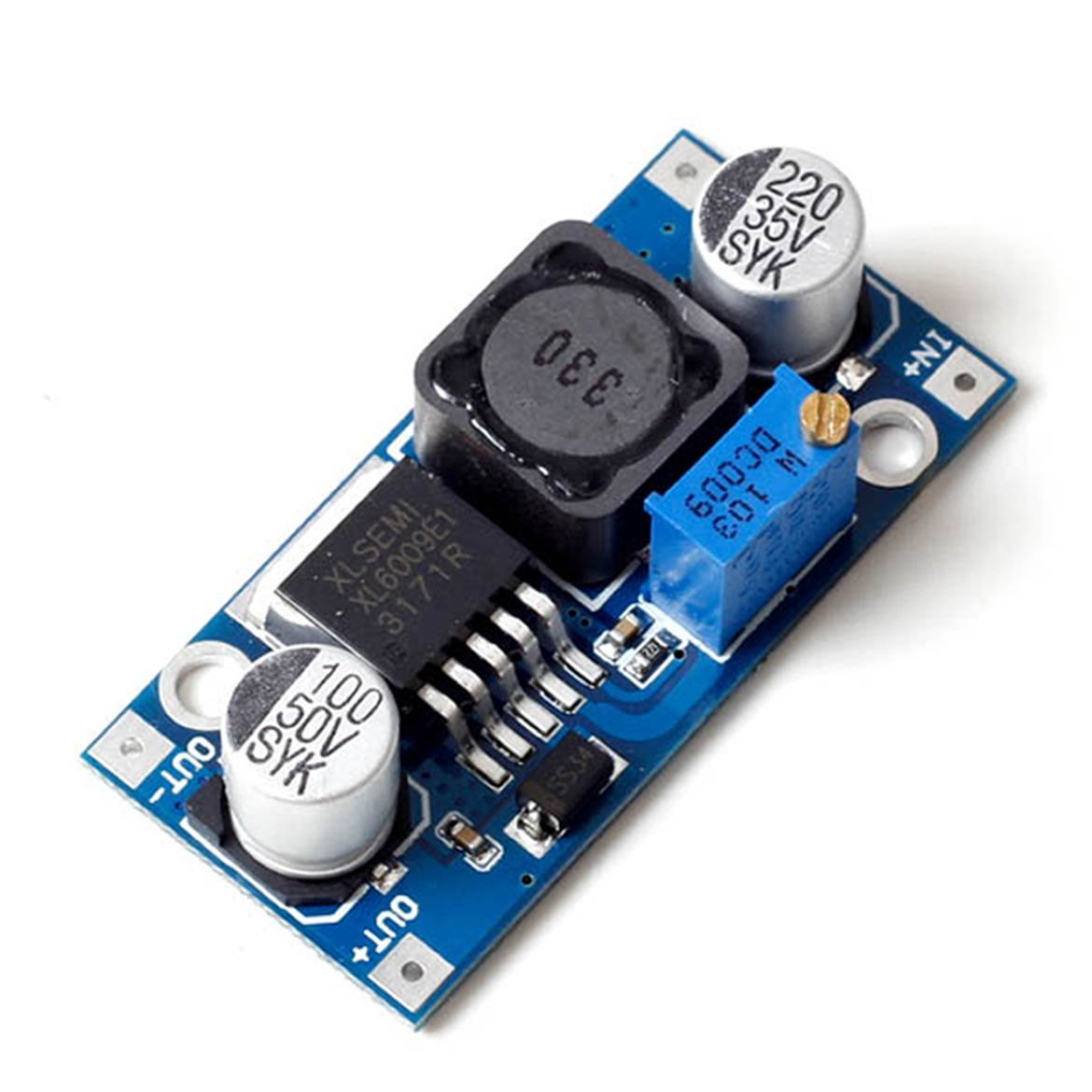

DC-to-DC Step Up XL6009 Module (4A) เป็นโมดูลแปลงไฟ DC to DC แบบ  Step Up/ Buck-Boost (แปลงไฟขึ้น) ใช้ชิพ XL6009

สามารถใช้ได้กับแรงดัน Input 3V ~ 32V

แปลงเป็นแรงดัน Output 5V ~ 35V (โดยการปรับค่าที่ R ปรับค่าได้)

จ่ายกระแสต่อเนื่องสูงสุดได้ 4A

IN-IN + input Positive Input Negative!

Positive output OUT + OUT-output negative

Test comparison sample reference:

Input 3V Output 12V 0.4A 4.8W

Input 5V Output 12V 0.8A 9.6W

Input 7.4V Output 12V 1.5A 18W

Input 12V Output 15V 2A 30W

Input 12V Output 16V 2A 32W

Input 12V Output 18V 1.6A 28.8W

Input 12V Output 19V 1.5A 28.5W

Input 12V Output 24V 1 A 24W

Vin * Iin * Efficiency = Vout * Iout

Vin: Input Voltage

Iin: input current

Vout: Output Voltage

Iout: output current

Our products are independent research and development and production, sophisticated technology, each products are through strict test before sent to the user. And can meet the demand of batch.

32 V - 3.2 V input output highest 38 V

Output voltage range: 4 v to 38 v dc voltage continuously adjustable, high efficiency (96%) of the maximum output current for 4 a.

Advantage: use double thickening black oil PCB with high quality, all use imported SMD aluminum electrolytic capacitors, high Q value power inductors. And every piece of plate passes through the strict technical test, test completely using separate antistatic protection bag packaging.

Note:

Does this modules relative to the LM2577 triode mode conversion efficiency is higher

Does this module is adjustable booster module, can by adjusting the precision of modules above circle more adjustable potentiometer

To change the output voltage. The highest output voltage is 38 v. Chronological booster, reverse-time step-down.

Does the module above marked GND (input), the IN + (input), GND (output), the OUT + (output)

Does working temperature: : industrial grade 40  to + 85  (-) (ambient temperature more than 40 degrees, please reduce power use, or enhance heat dissipation)
