LCD 128x64 Dots Graphic White on Blue Color Backlight LCD Display Shield 5.0V

LCD 128x64 Dots Graphic Blue Color Backlight LCD Display Shield 5.0V

จอแสดงผล LCD ขนาด 128 x 64 ตัวอักษร พร้อมไฟ Blacklight สีน้ำเงิน ใช้ไฟ 5V

 รายละเอียด LCD 128x64 Dots Graphic Blue Color Backlight LCD Display Shield 5.0V

• Logic working voltage: + 5.0 V
• LCD drive voltage: + 5.0 V
• Backlight: Blue

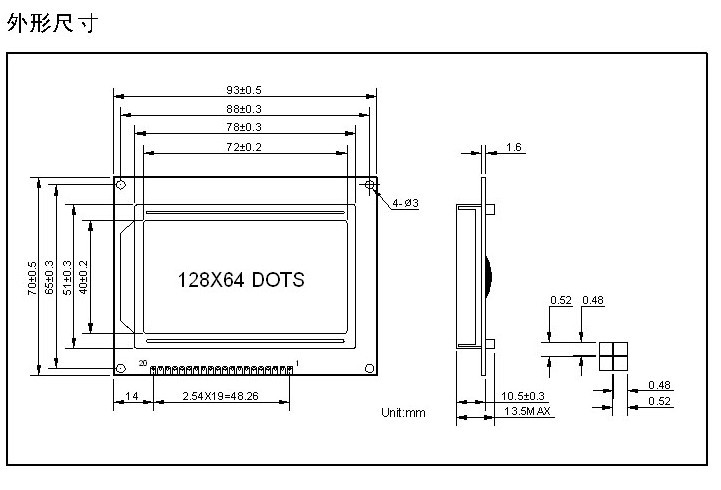

• View area: 7.0cm(L) * 4.4cm(W)
• Dots size: 0.48mm (L) * 0.48mm (W)
• Dots pitch: 0.52mm (L) * 0.52mm (W)
• LCD type: STN (Blue)
• Viewing angle: 6 o’clock
• Operating temperature: -20 to 70°c
• Storage temperature: -30 to 80°c
• Package weight: 36g
• Product size: 7.5 * 5.3 * 0.6cm
• Package size: 12.0 * 8.3 * 0.8cm
