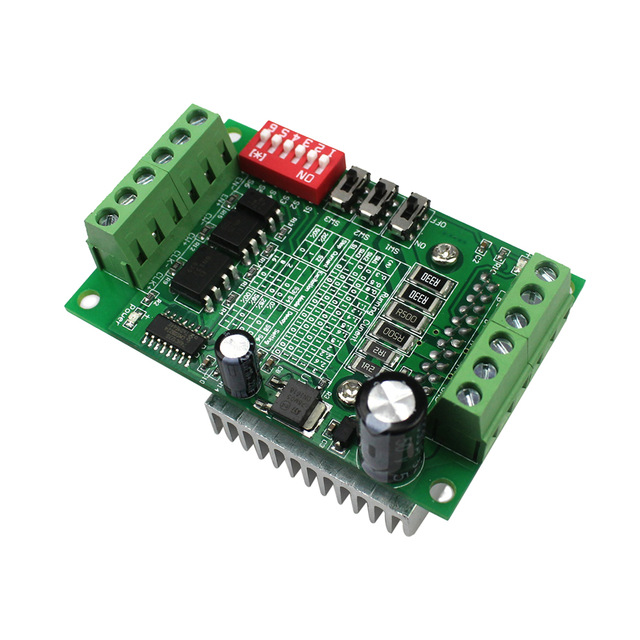

TB6560 3A Stepper Motor Driver Board

โมดูลสำหรับขับสเตปเปอร์มอเตอร์ 10-35V กระแส 3A ใช้ไอซี Toshiba TB6560AHQ

โคดตัวอย่าง Arduino TB6560
ข้อมูลเพิ่มเติม TB6560

ข้อมูล TB6560 3A Stepper Motor Driver Board

Rated maximum output: ± 3A, peak 3.5A.

Working voltage DC 10V-35V. Recommended to use a switching power supply DC24V power supply.

Using the Toshiba TB6560AHQ new original chip with low voltage shutdown, overheating stop and over current protection circuit to ensure optimal performance.

For two-phase within 42,57 stepping 3A / four-phase / of line four / six-wire stepper motor, and is not suitable for more than 3A stepper motor. Automatic half current function.

6N137 high-speed optical coupling, guarantee high speed without losing step.

Subdivision: whole step, half-step, step 1/8, 1/16 step, a maximum of 16 Subdivisions.

Features similar products:

• current grade-by-adjustable to meet your demand for a variety of applications.
• semi-automatic flow adjustable.
• 6N137 high-speed optical coupling, guarantee high speed without losing step.
• plate printed setup instructions operation without manual also.
• thick teeth radiator, good heat dissipation.

Size:75*50*35(mm)(LxWxH) / 2.95''x1.96''x1.37'' (approx)
