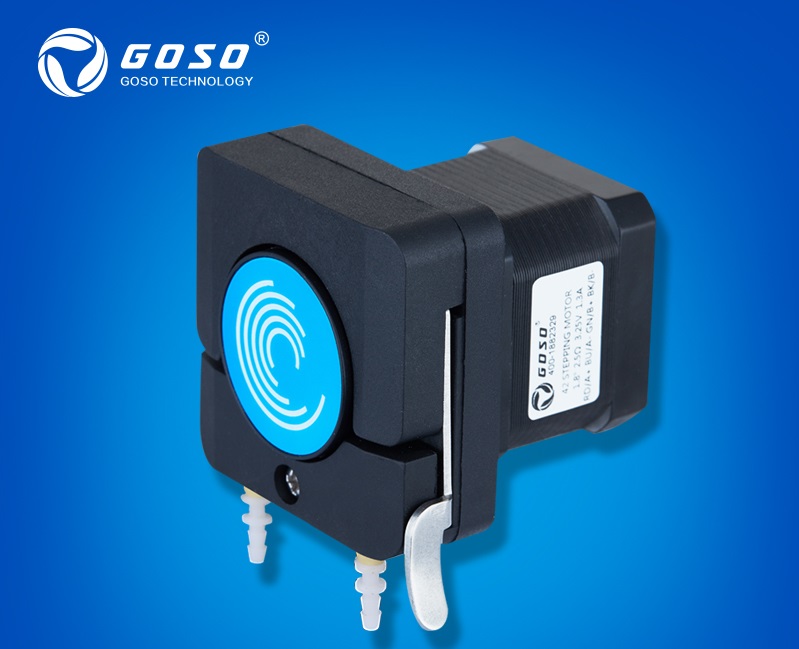

Stepper motor peristaltic pump

Peristaltic pump Specifications:
Speed range: 1~50.0rpm,reversing reversible
velocity resolution: 1rpm (external control0.1rpm)
Power consumption<10W
Working environment:temperature0~40deg.] C , relative humidity<80% of the
stepper motor:42
head weight: 80g(stepper motor weight400g)
Degree of protection: IP31
features
small size,light weight and
can be embedded in the work of the panel or mounted on a support
hose easily replaceableflexible operations
suitable asOEMproducts

Product wiring: black A + green A-blue B + red B-
