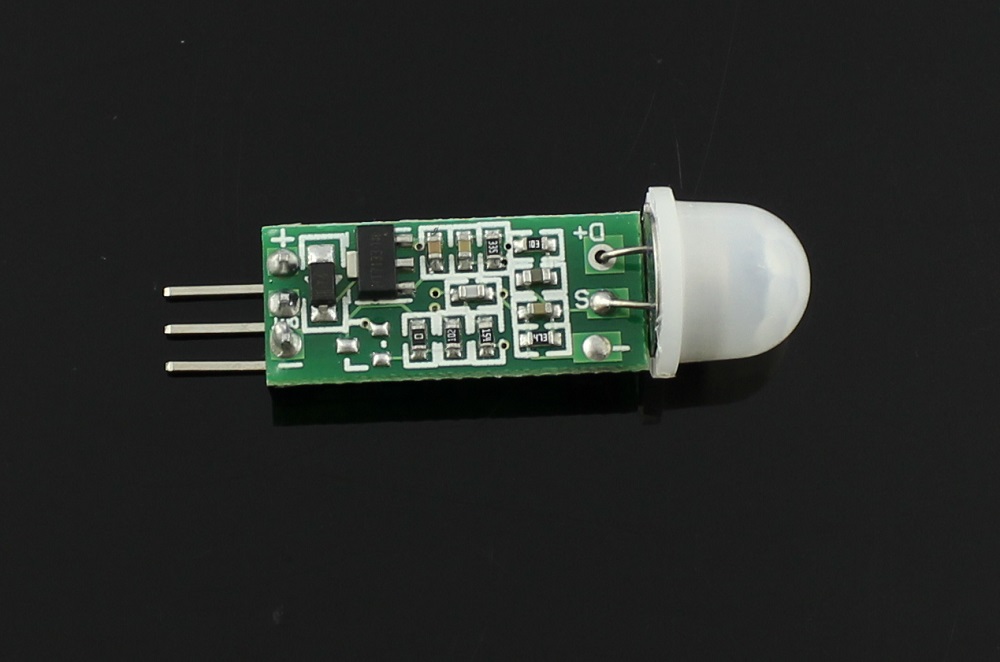

HC-SR505 Mini PIR Motion Sensor

HC-SR505 Mini PIR Motion Sensor is based on infrared technology and it can automatic control by itself with high sensitivity and high reliability. Because of the minimum size and low-power operation mode, it widely used in various of automatic electronic equipment, especially battery-powered automatic products.

Features

• Automatic Control
• Minimum size
• Repeatable Trigger
• Wide range of operating voltage
• Low-power
• Output high signal

Applications

• Body induction lamps
• Body induction toys
• Security Products
• Industrial automation and control
• Auto-sensing of electrical equipment
• Battery-powered automatic control

Specification

• Operating voltage range: DC4.5-20V
• Quiescent Current: <60uA
• Level output: Gao 3.3V / Low 0V
• Trigger: reusable trigger (default)
• Delay Time: The default 8S + -30%
• Board Dimensions: 10 * 23mm
• Induction angle:
• Sensing distance: 3 meters
• Working temperature: -20 to +80 degrees
• Sensor Lens Dimensions: Diameter: 10mm



Package list

• HC-SR505 Mini PIR Motion Sensor x1
