Graphic LCD 84x48 - Nokia 5110

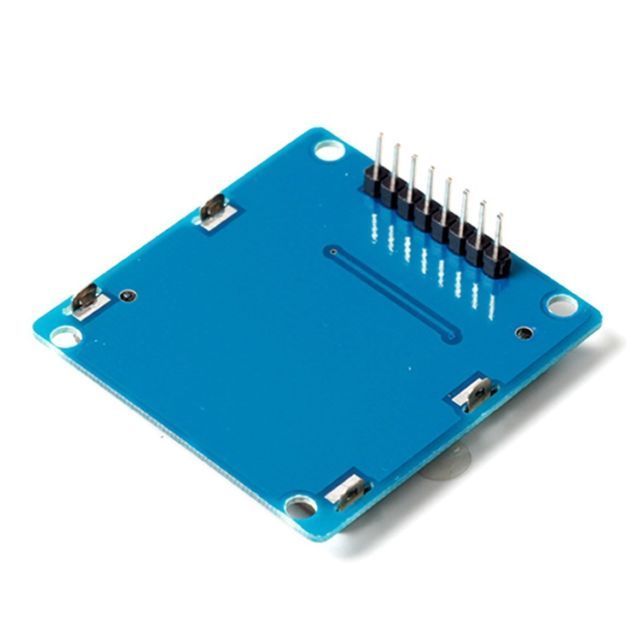

The Nokia 5110 (GLCD5110) is a basic graphic LCD screen for lots of applications. It was originally intended for as a cell phone screen. This one is mounted on an easy to solder PCB.

 It uses the PCD8544 controller. The PCD8544 is a low power CMOS LCD controller/driver, designed to drive a graphic display of 48 rows and 84 columns. All necessary functions for the display are provided in a single chip, including on-chip generation of LCD supply and bias voltages, resulting in a minimum of external components and low power consumption. The PCD8544 interfaces to microcontrollers through a serial bus interface.

 Note: This uses the same driver as the Nokia 3310 LCD.

Dimensions: 45x45mm

Documents:

• Datasheet (PDF)
• Arduino Example (WEB)
• Bitmap Converter (WEB)
• Example Code for Bitmap
• GLCD5110 Pin Description (JPG)
• GLCD5110 + Arduino (JPG)
• Quickstart Guide
