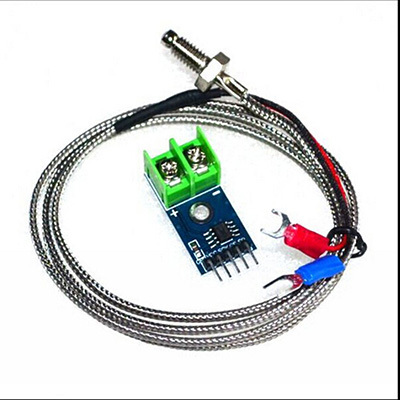

Temperature Sensor Set (MAX6675 Module and Thermocouple Type K 0-400 C)

MAX6675 's main features are as follow


1, a simple SPI serial interface temperature output.

2, 0centigrade. ~ 1024 centigrade. temperature range, the converter resolution of 0.25centigrade. temperature.

3, the internal cold junction compensation.

4, high-impedance differential inputs.

5, thermocouple breakage detection.

6, wide operating voltage range 3. 0~5.5V, current 50mA.

8, working temperature range-20 centigrade. ~ 85 centigrade.

9, 2000V ESD signals.

Module interface: GND VCC SCK CS SO

Supply voltage: 3~5V DC

Module dimensions: 15mm*25mm

Delivery form:

The MAX6675 module x 1

K-type thermocouple x 1

DuPont thread x 5


Screw head specifications: M6
